Functional Films
We offer trial production of film samples for companies that do not have the initial study of nanoimprinting or imprinting equipment. We can process various plastic and glass substrates. Adhesive processing is also available.
Prototype example
| Film size | 300mm x 300mm |
| Imprint structure | Moth-eye |
| Molds used | HT-AR-09C |
| Substrate material | PET film |
Supported base film
PET, TAC, PC, PMMA
*Imprinting is performed with resins that are compatible with various base materials.
*Adhesive treatment on the back is also available.
Prototype example
| Glass size | 60mm x 60mm |
| Thickness | 0.55mm |
| Imprint structure | MLA |
| Molds used | HT-MLA-09C |
| Substrate material | Non-alkaline glass |
The InnoX Group will co-develop the nanoimprinting process based on the customer's needs. In order to realize a mass production process, various issues need to be solved one by one. The InnoX Group's nanoimprinting technology makes it possible to form nanostructured patterns with large area and high throughput, which has been a challenge for conventional technologies.

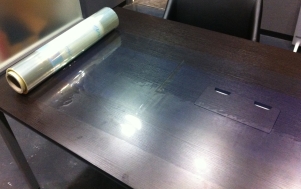

Prototype example
| Film size | 300mm x 100m |
| Imprint structure | Moth-eye |
| Molds used | HT-AR-09C |
| Substrate material | PET film |
